50L Stainless Steel Isolation/Crystallization/Filtration Reactor

50L Stainless Steel Isolation/Crystallization/Filtration Reactor

Dual Jacketed Sanitary Grade Stainless Steel Isolation/Crystallization/Filtration Reactor/Lab crystallizer
Solvent-resistant PTFE on all sealing components ensures long time durability and operation
Rugged stainless steel stirrer, suitable for a wide range of viscous materials
Premium Stainless Steel: Electropolished Internal Tank (SS316L), Fit For Standard Of Food And Pharmaceutical Industries
Larger Capacity: Processing capacity ranges from 50L to 200L, and the magnetic sealing guarantees the inner vacuum(0.1 Mpa to 0.1 Mpa)
Jacketed Interface: The Jacketed interface can be matched with a different heater and chiller, and there is an insulation layer outside the jacket for heat preservation
CE Certified Explosion proof motor (optional: UL listed) and control cabinet, safe for processing reaction with large amount of solvent
Combo functions of crystalliztion, isolation, solvent recycling, filtration, herbal extraction, and decarboxylation in one set
Thorough isolation of solid and liquid via bottom filter plate and easy landing solid in bottom tank


Availability:



Inquiry Email

Model:
VFR50S
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

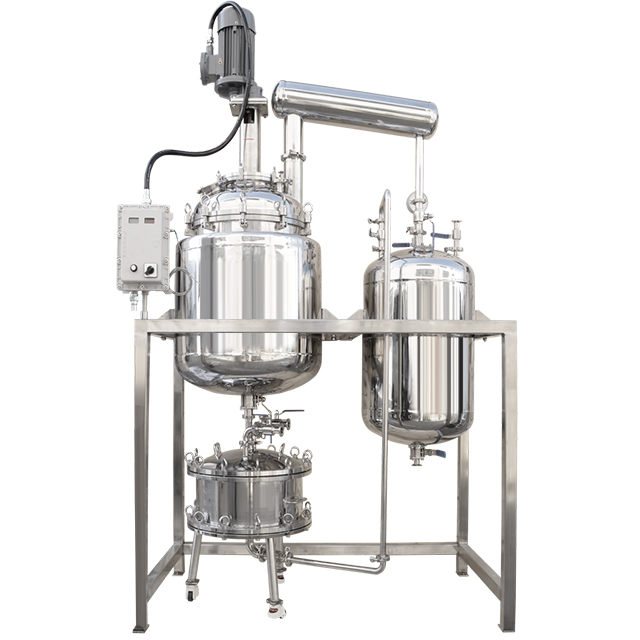

The system not only includes filter reactors that can make reaction and filtration in the same vessel to reduce the material losses but also can recover the solvents with the help of a condenser and collection tank in the vacuum environment. Each filter reactor consists of a filter plate, corrosion-resistant jacketed reaction vessel, PTFE coated variable speed stirrer system, and other accessories like an electric control cabinet.

Single or Dual Jacketed Versatile Functions Stainless Steel Reactor

Mixing, Synthesi, Concentration, Herbal Extraction, Decarboxylation, Solvent Recovery

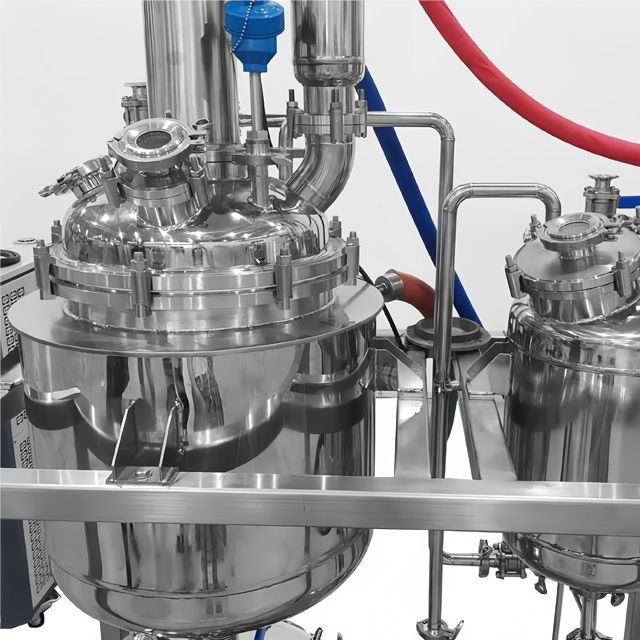

stainless steel filter reactor

Product Details

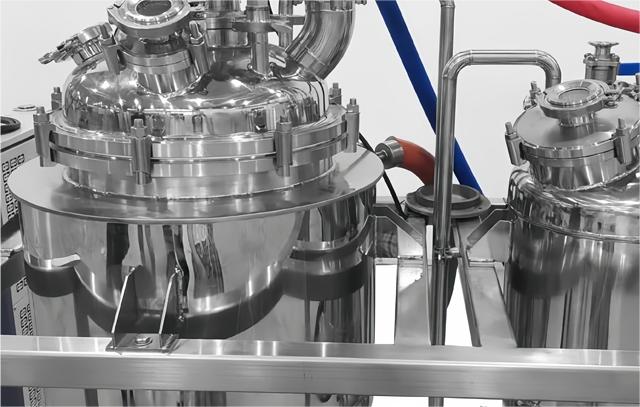

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L

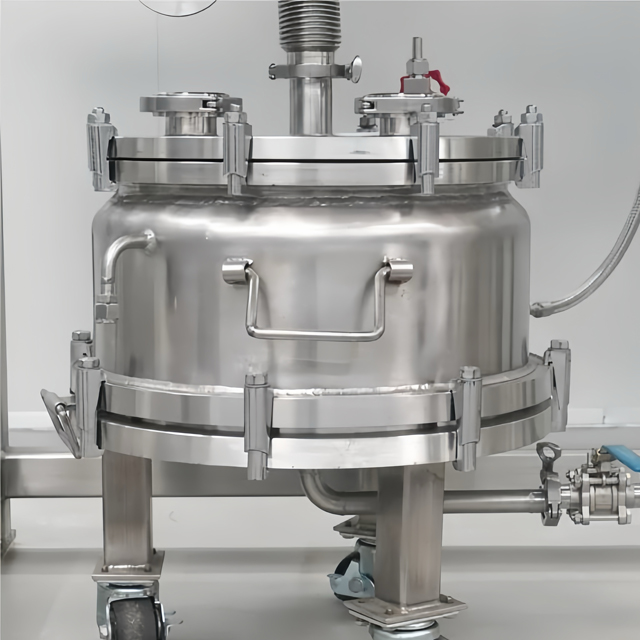

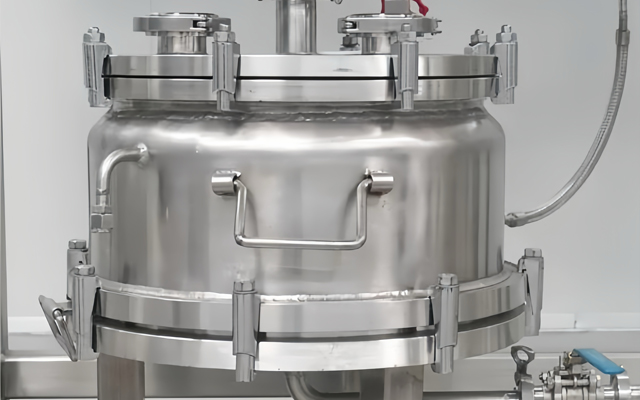

Solid Filtration and Landing Tank

Thorough Isolation Of Solid And Liquid Via Bottom Filter Plate And Easy Landing Solid in Bottom Tank

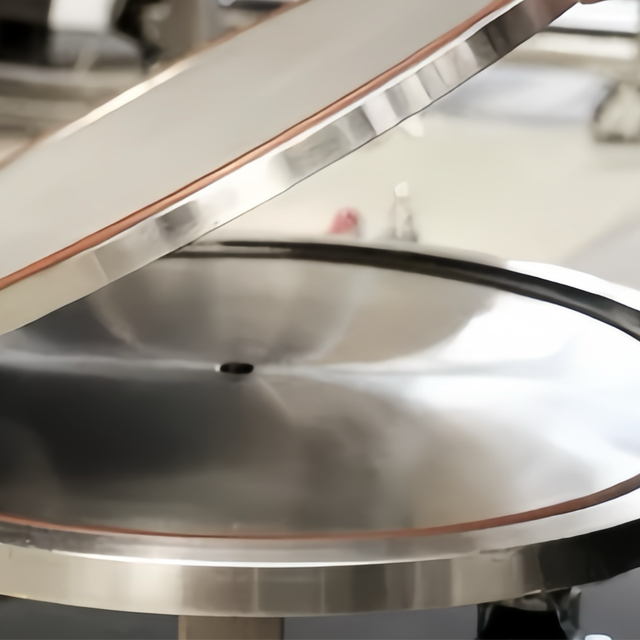

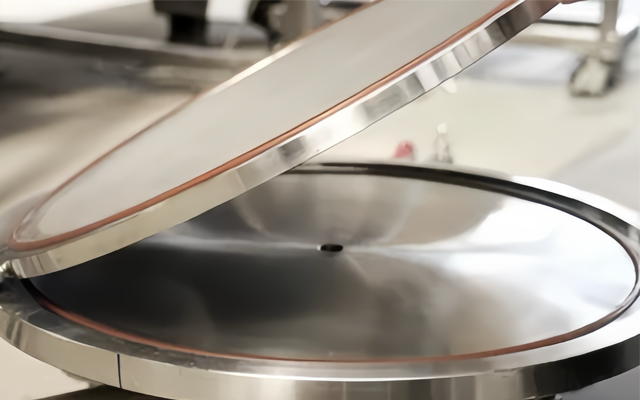

Stainless Steel Filter

Movable filter plate, easy to operate and discharge

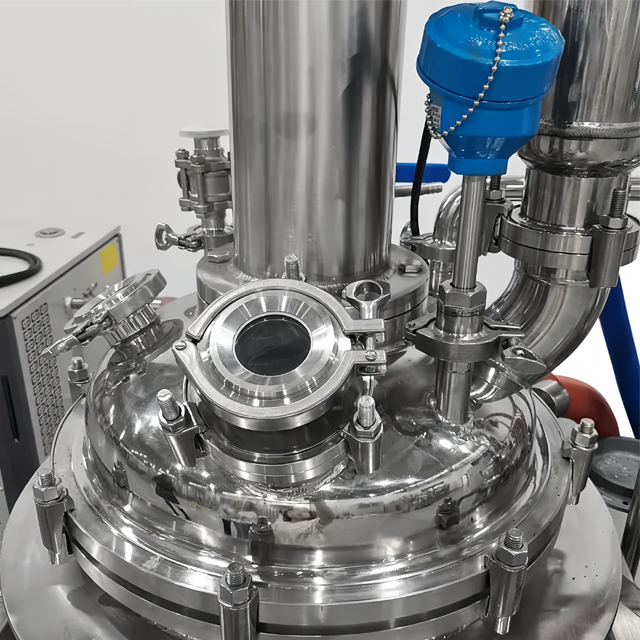

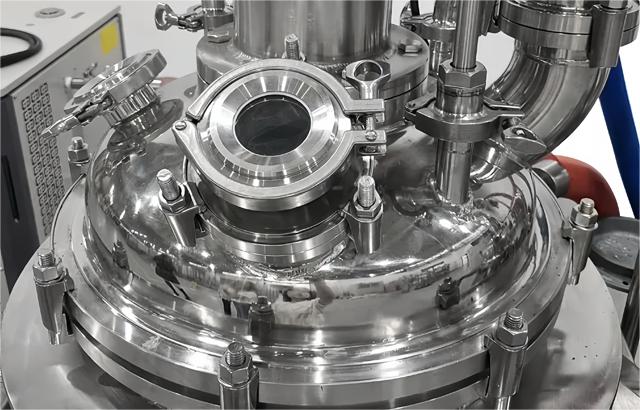

Tank Cover

Sight window makes observation of reacting material easy; Ports and the caliber can be customized

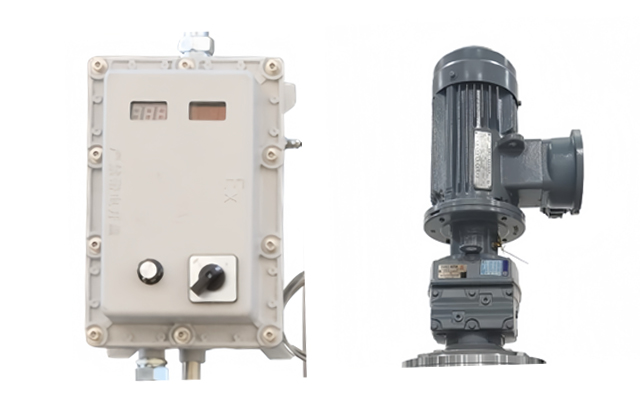

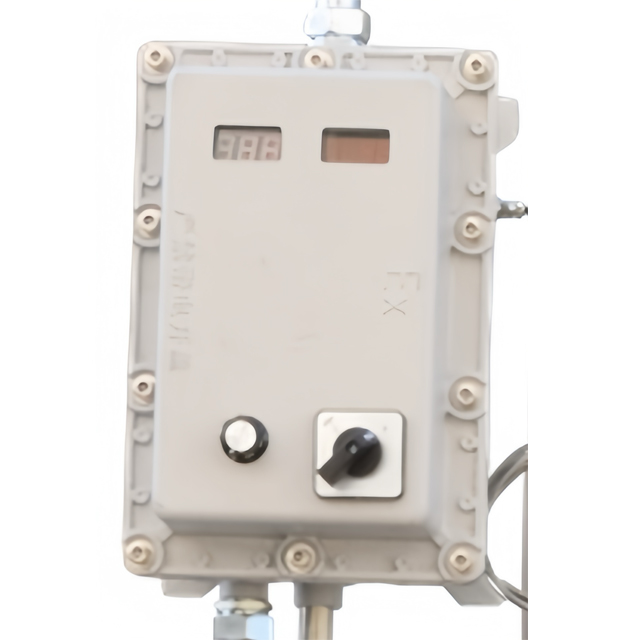

Motor and Controller

CE Certified Explosion proof motor (optional: UL listed) and control cabinet, safe for processing reaction with large amount of solvents

Model	VFR50S	VFR100S	VFR150S	VFR200S
Reaction Vessel Capacity	50L / 13.20Gal	100L / 26.41Gal	150L / 39.61Gal	200L / 52.8Gal
Solid Landing Tank Capacity	25L/6.6Gal	40L/10.5Gal	40L/10.5Gal	60L/15.84Gal
Solvent Collection Tank Capacity	30L / 7.8Gal	50L / 13.20Gal	50L / 13.20Gal	100L / 26.41Gal
Mother Liquid Collection Tank Capacity	30L / 7.8Gal	80L / 21Gal	80L / 21Gal	150L / 39.61Gal
Ports on Lid of Reaction Vessel	6 Ports: Stirring port, Air inlet port, Feeding port, Thermowell port,Vacuum port and Spare port (Customizable)
Jacket Quantity	Dual Jacket: inner heating jacket and outer insulation jacket
Sealing Mode	Magnetic Sealing
Material	Wet parts: Sanitary Grade 316L Stainles Steel Outernal parts and Frame:Sanitary Grade 304 Stainless Steel (customizable)
Stirrer	316L Stainless Steel Stirrer (shape and layer quantities are customizable)
Stirring Speed	80-350RPM
Motor Power	1500W
Power Supply	220V, 50/60Hz, Single Phase; 220V or 380V, 50/60Hz, 3 Phase
Control Cabinet	Explosion-proof control cabinet with digital display stirring speed controller
Condensation Area	1m²	2m²	3m²	4m²
Stainless Steel Filter Diameter	Φ400mm	Φ500mm	Φ500mm	Φ600mm
Pore Size of Filter Plate	100μm (customizable)
Filter Accessories	Filter cloth and filer bag
Working Temperature Range	-80°C to 250°C / -112°F to 482°F
