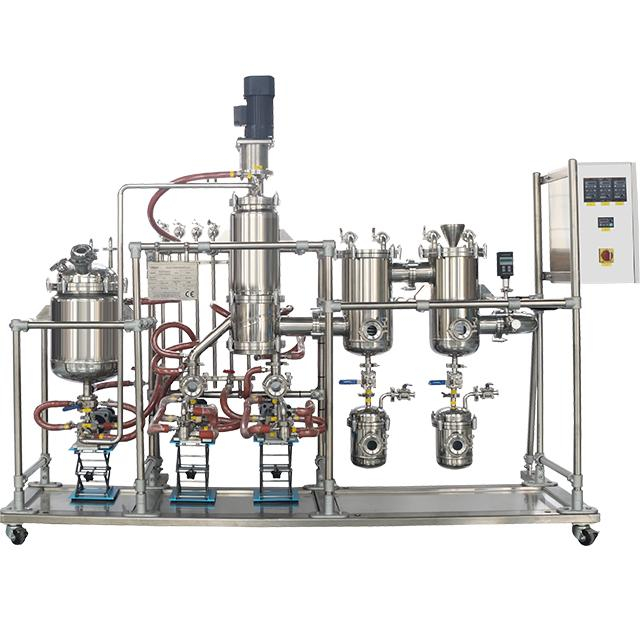

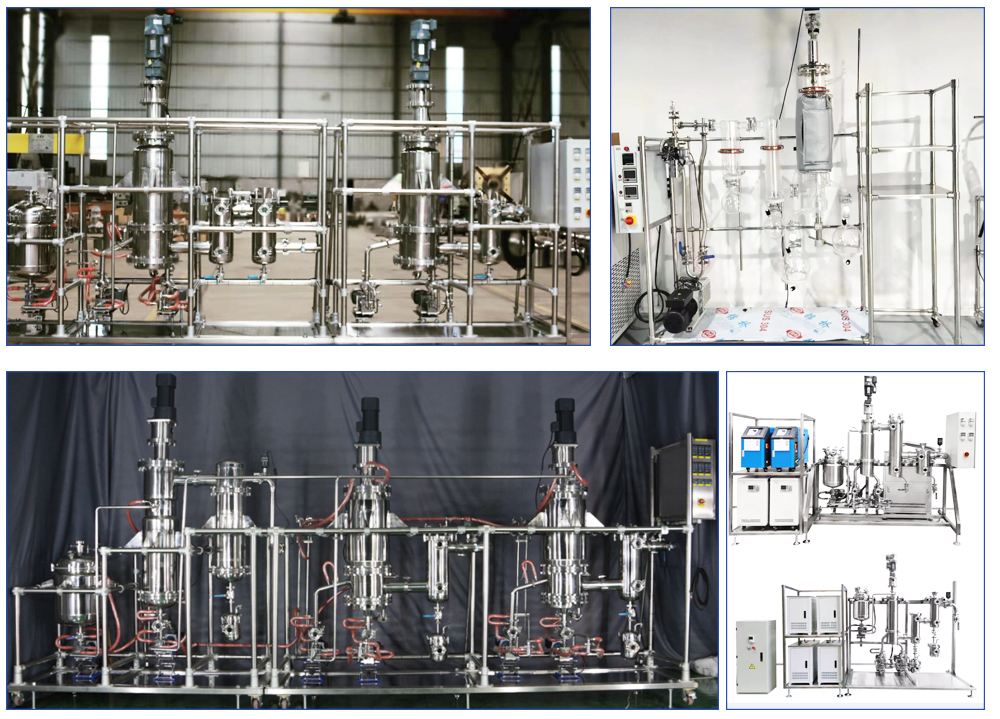

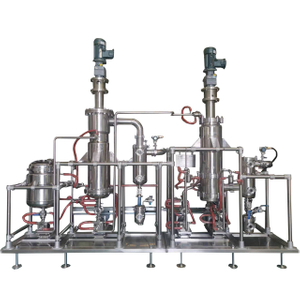

7-8inch Stainless Steel Wiped (Thin) Film (Molecular) Distillation System

7-8inch Stainless Steel Wiped (Thin) Film (Molecular) Distillation System

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Short path evaporation technology applied for thermally sensitive and high boiling points compounds
High precision PTFE scraper for forming a complete and even thin film for short residence time and high distillation rates

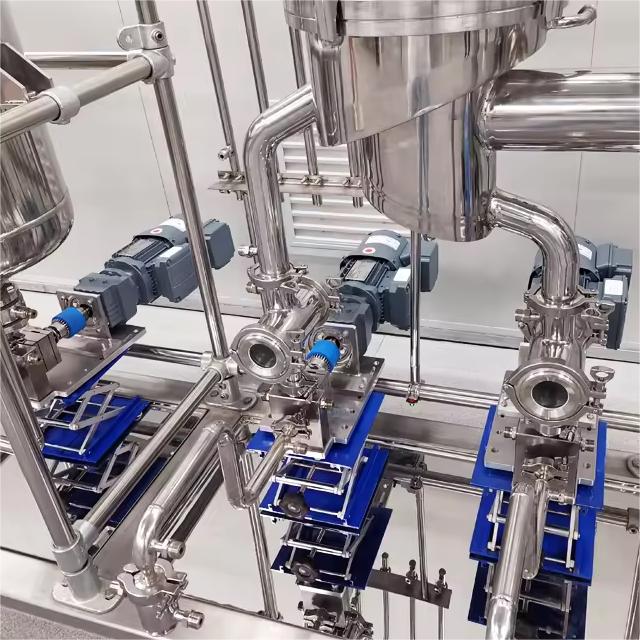

Non-stop & automatic running by input and output pumps
Sanitary grade stainless steel 316L and 304
Magnetic sealing and viton sealing rings ensuring high vacuum level
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability
High thermal shock resistance and mechanically stable design
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability


Availability:



Inquiry Email

Model:
VWF07S
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

Widely used in vacuum distillation of terpenes, terpenoids chlorophyll, phytosterols; Fat & Wax removal; Concentration of botanical & essential oils deodorization; Essential oil isolation; Molecular distillations of esters; Fatty acids & triglycerides flavor purification, etc.

Short path evaporation technology applied for thermally sensitive and high boiling points compounds
High precision PTFEscraper for forming a complete and even thin film for short residence time and high distillation rates
Non-stop & automatic running by input and output pump
Multiple functions of distillation, evaporation, concentration, sepration, purification, deodorization,etc.

wiped film evaporator

Product Details

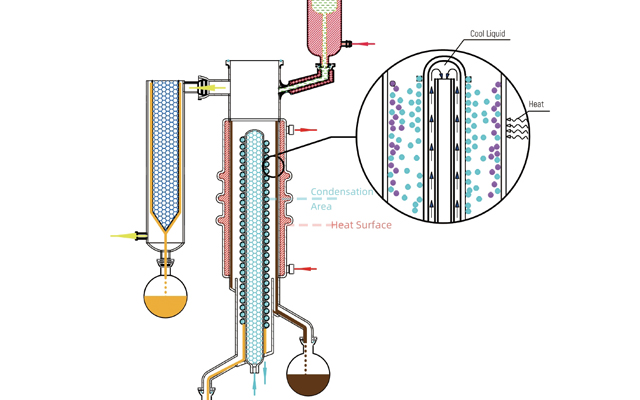

Short Path Distillation

Short path evaporation technology applied for thermally sensitive and high boiling points compounds

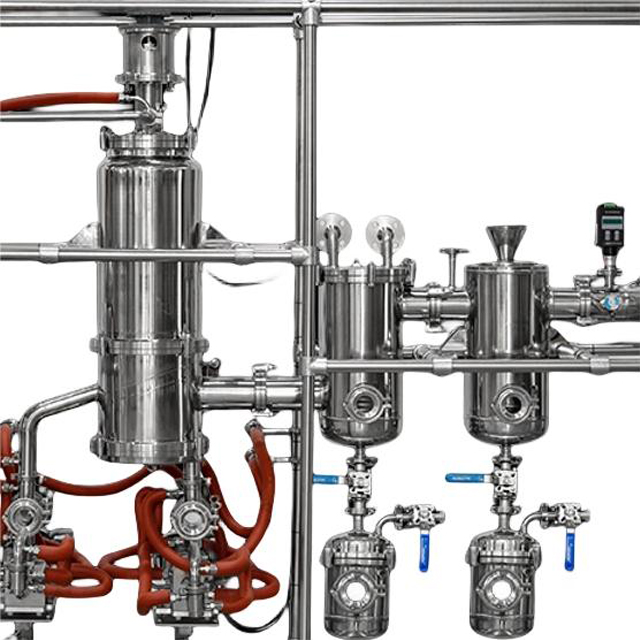

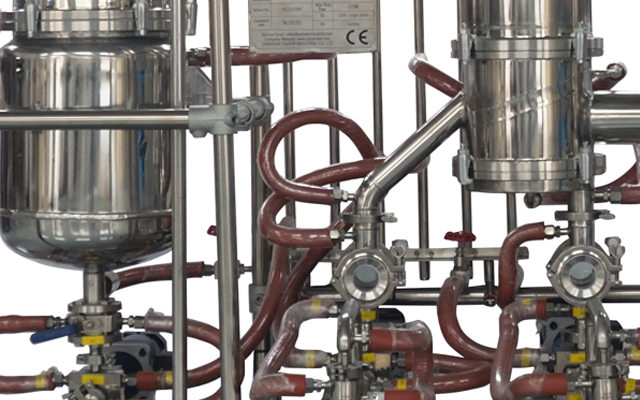

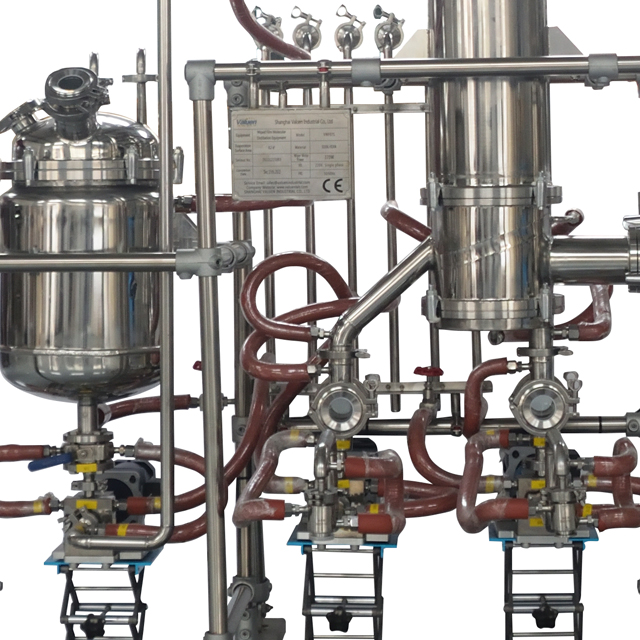

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L

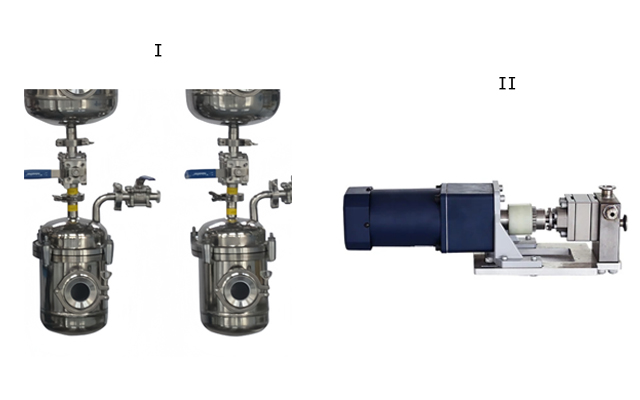

Collection Mode

I. Manual collection via collection tank
II. Automatic collection via input & output pumps

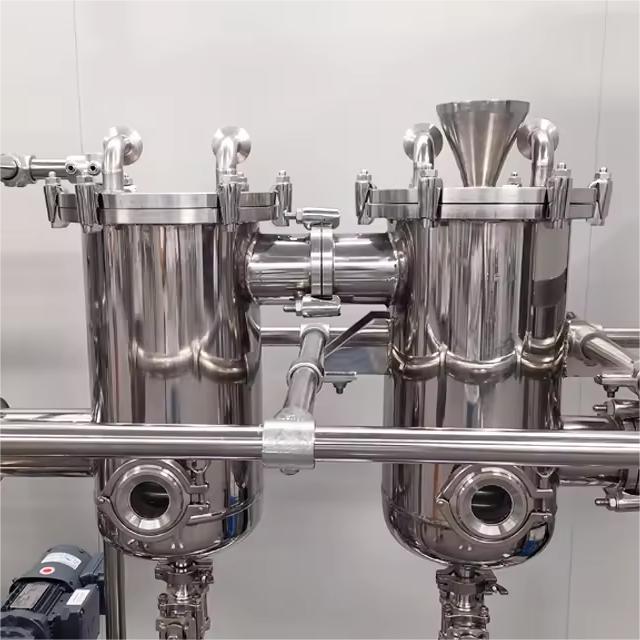

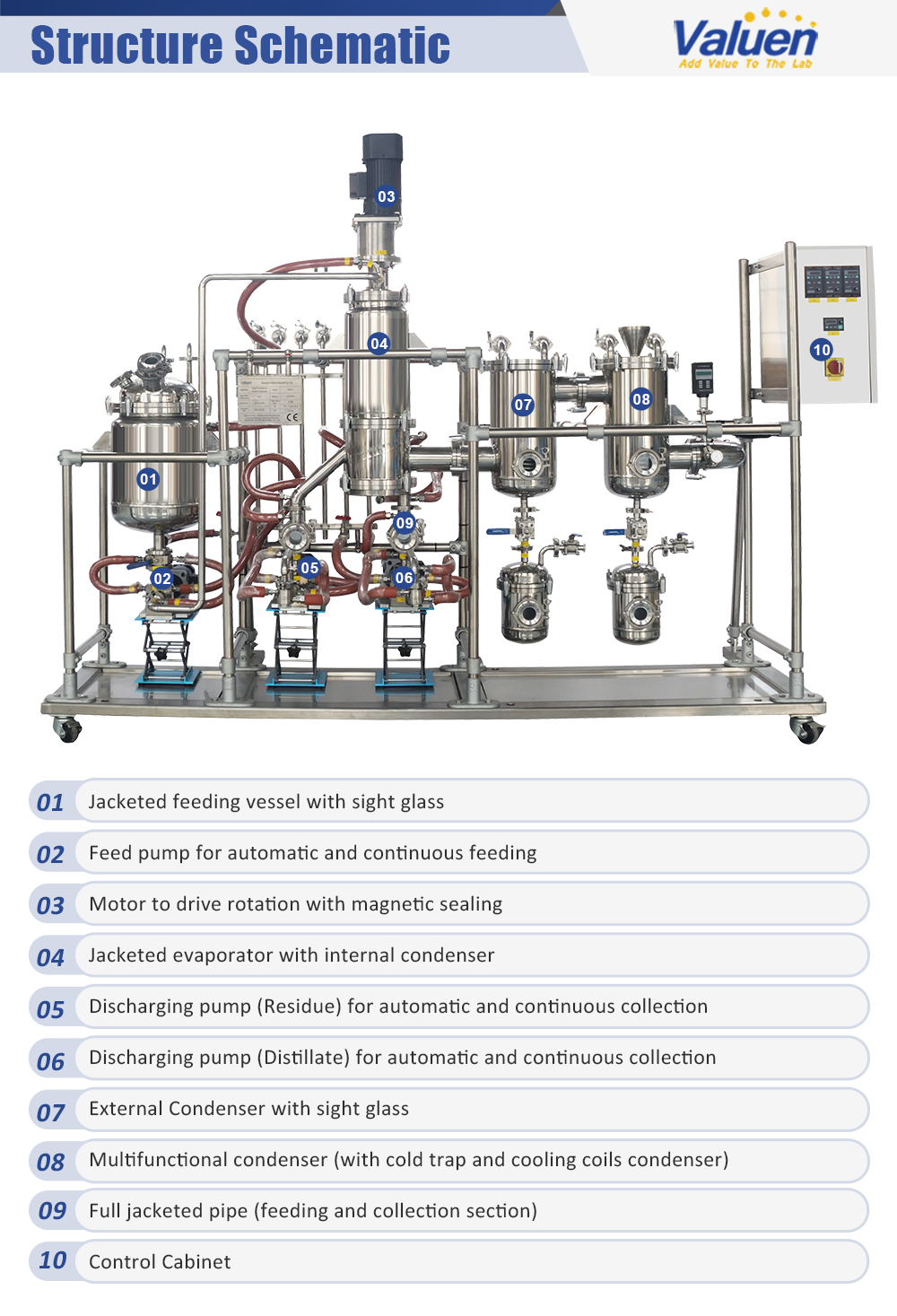

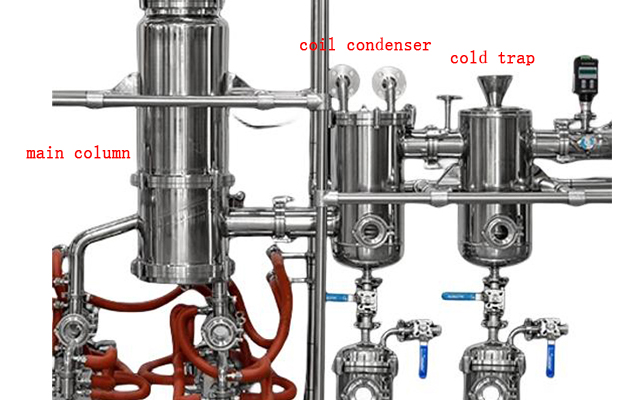

Condensation Area & Complete Structure

I. Main column + 1 cold trap with coils inside
II. Main column + 1 coils condenser + 1 cold trap with coils inside

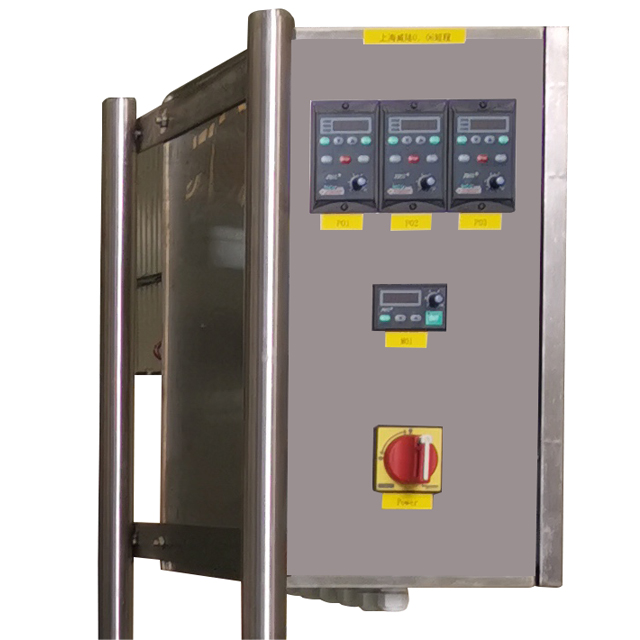

Control Cabinet

I. Digital display of rotation speed, 1 input and 2 output pumps speed
II. Customized: integrate all utilities control on control cabinet

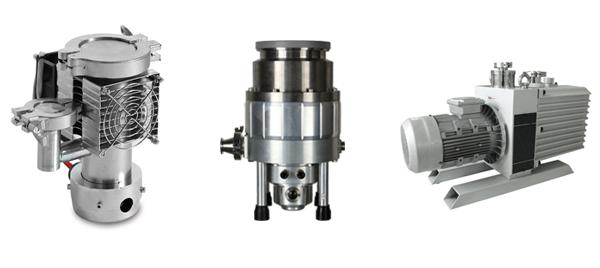

Vacuum Setting

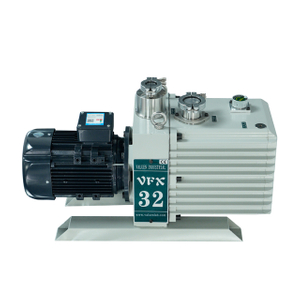

I. Rotary vane vacuum pump: 1 stage or 2 stage pump according to vacuum level request
II. Diffusion pump
III. Turbo molecule pump

Model	VWF05S	VWF07S	VWF08S	VWF12S
Evaporation Surface Area	0.1m²	0.2m²	0.3m²	0.5m²
Column Diameter	125mm (5inch)	184mm (7.2inch)	210mm (8.3inch)	313mm (12.3 inch)
Material	Wetted Parts: Sanitary Grade Stainless Steel 316L; Rack and Other Parts: Sanitary Grade Stainless Steel 304
Structure	Full Jacket Structure (jacketed feeding tank, main column, feeding and collection pipes)
Feeding Tank Volume	15L	20L	30L	50L
Feeding Mode	Auto feeding by input pump
Collection Mode	Auto Collection by Output Pump or Manual Collection by Receiving Tanks
Throughtput	3-6L/H	4-7L/H	5-15L/H	10-25L/H
Cold Trap & Condensers	2 Modules for Options: I: 1 Cold Trap with Coils Inside; II: 1 Coils Condenser and 1 Cold Trap with Coils Inside
Control Cabinet	Rotating speed controller, and speed controllers of both input and output pumps (Optional: Integrate all utilities control on control panel )
Stirring Mode	Magnetic Stirring
Wiper Style	PTFE blades or rollers
Motor Power	200W			750W
Power Supply	220V, 50/60Hz, Single Phase

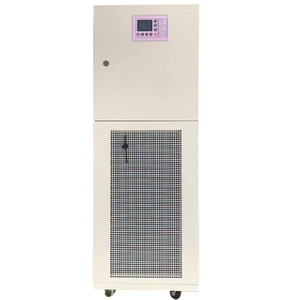

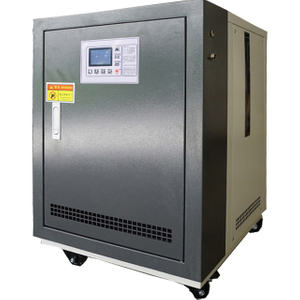

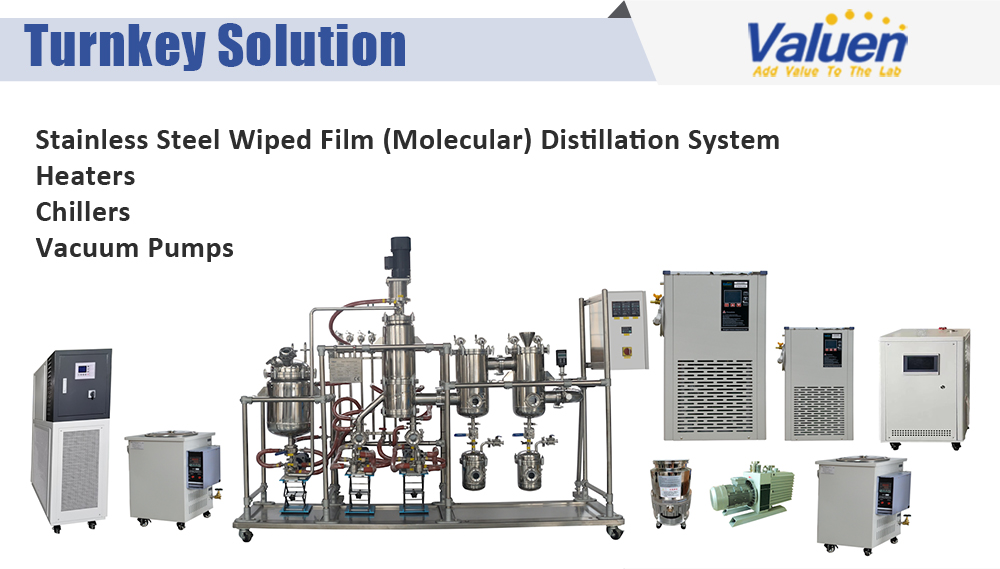

Utilities (Optional)	Heaters for Feeding Tank, Main Column; Chillers for Internal and External Coils Condensers Vacuum Pump ( 1 or 2 stage)
Sealing	Main Sealing: Magnetic Coupling Sealing; Connection Sealing: Viton O rings & Clamps
Working Temperature	Room Temp. to 300℃
