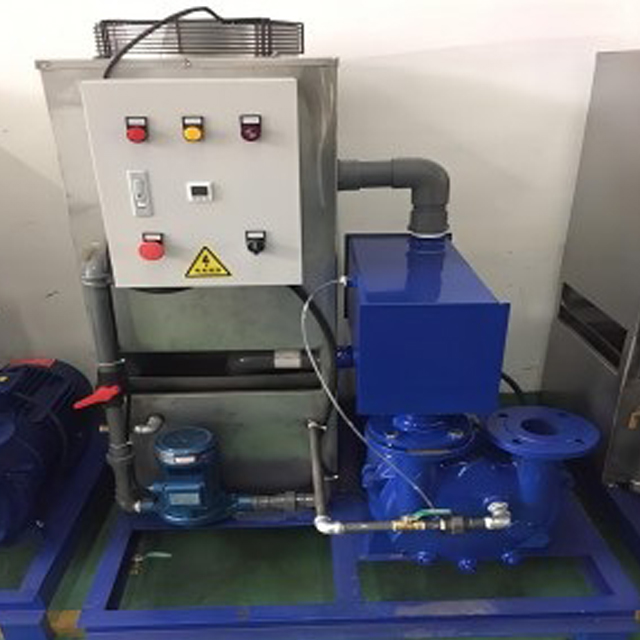

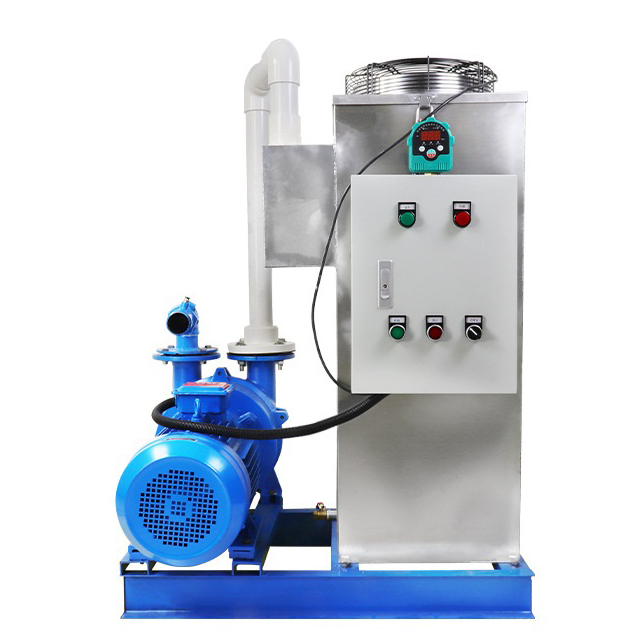

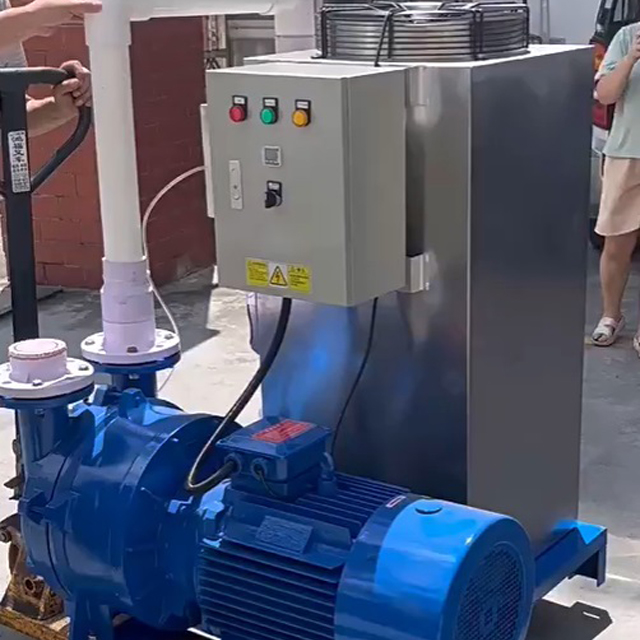

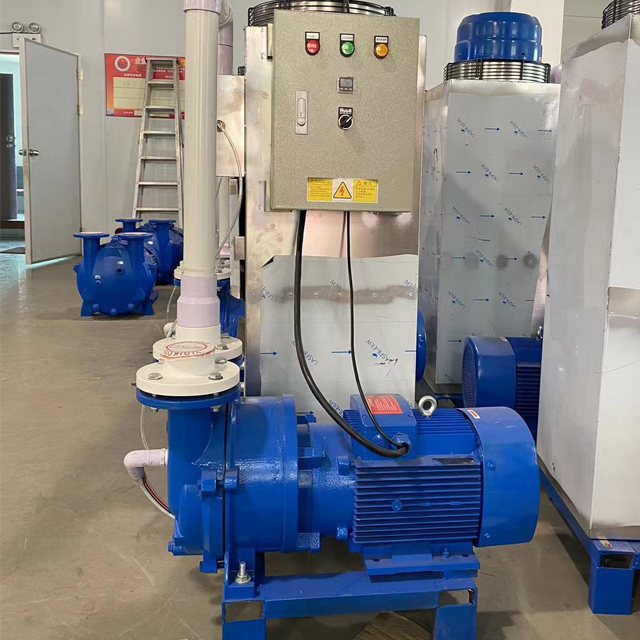

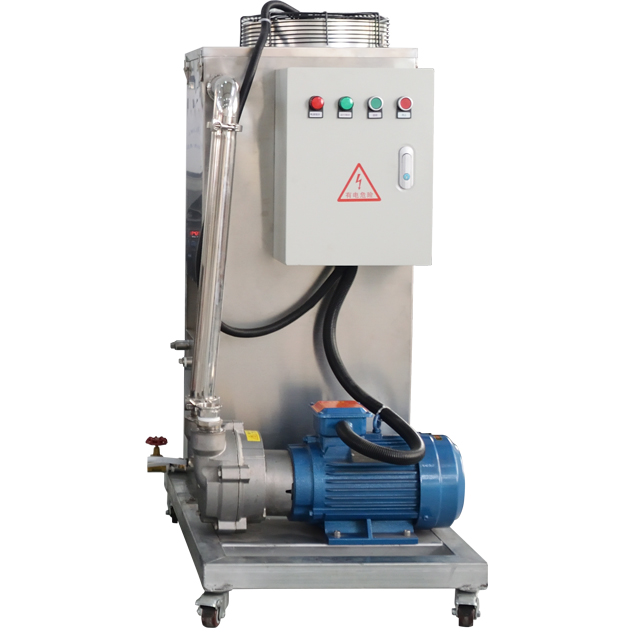

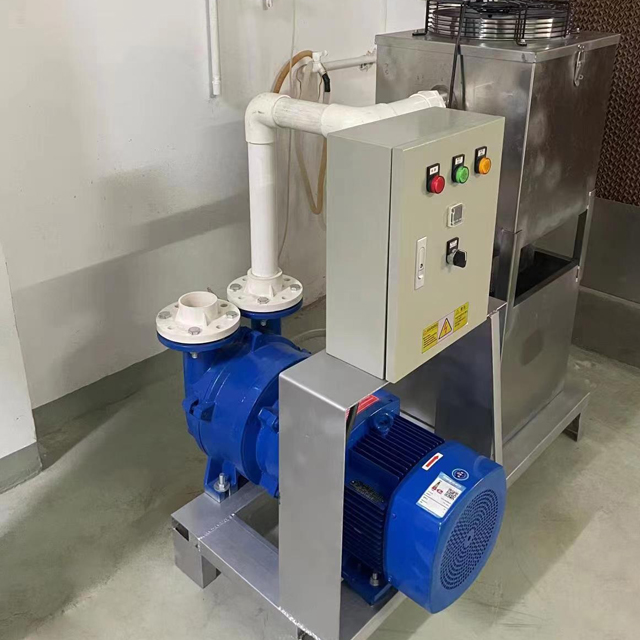

Industrial Water Cycle Vacuum Pump

Application:

Industrial water cycle vacuum pump mainly provides vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, filtration and decompression and degassing. This machine has been widely used in medical, chemical and biological industries. It can provide vacuum condition to equipment as below:

Evaporators
Reactors
Decarboxylation or Crystallization Equipment
Distillation or Fractional Equipment

Features:

With Excellent Mechanical Sealing Material Make Longer Service Life
Pure Copper Wire Motor Can Run 24 Hours to Improve Efficiency
Intelligent Electric Control Box Make Operation Safer and Easier
Equipped with Large Capacity Water Tank to Absorb Corrosive Gas
Water Tank Is Equipped with A Fan for Good Heat Dissipation


Availability:



Inquiry Email

Model:
VWP-80
Brand:
Valuen

Product Overview

Product Parameter

About US

With Excellent Mechanical Sealing Material Make Longer Service Life

Pure Copper Wire Motor Can Run 24 Hours to Improve Efficiency

Intelligent Electric Control Box Make Operation Safer and Easier

Equipped with Large Capacity Water Tank to Absorb Corrosive Gas

Water Tank Is Equipped with A Fan for Good Heat Dissipation

vacuum pump

Model	VWP-27	VWP-52	VWP-80	VWP-110	VWP-165	VWP-230	VWP-280	VWP-400	VWP-500
Motor Power(KW)	0.81KW	1.45KW	2.35KW	3.85KW	4KW	5.5KW	7.5KW	11KW	15KW
Circulating Pump Flow	27m³/h	52m³/h	80m³/h	110m³/h	165m³/h	230m³/h	280m³/h	400m³/h	500m³/h
Maximum Pressure	33hpa
Working Flow(m³/h)	0.12m³/h	0.12m³/h	0.15m³/h	0.25m³/h	0.4m³/h	0.5m³/h	0.6m³/h	0.9m³/h	1.2m³/h
Tank Capacity(L)	50L				100L
Decibel(dbA)	62	65	66	72	63	68	69	73	74
Weight(KG)	32	33	50	62	94	110	136	184	296
