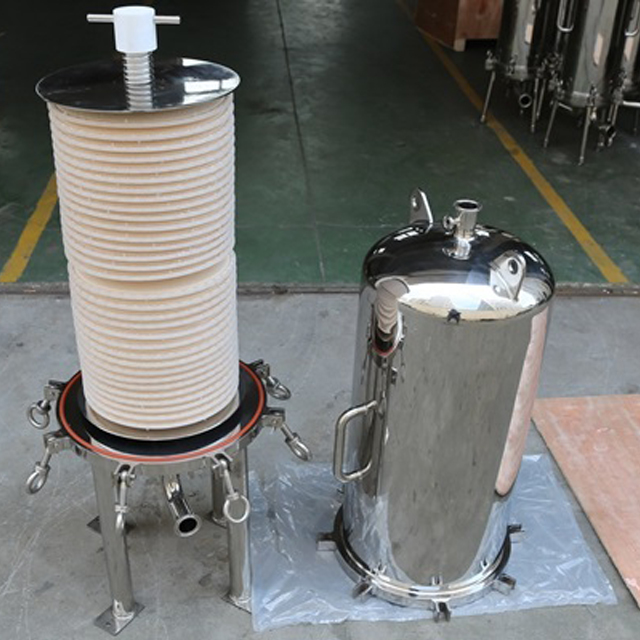

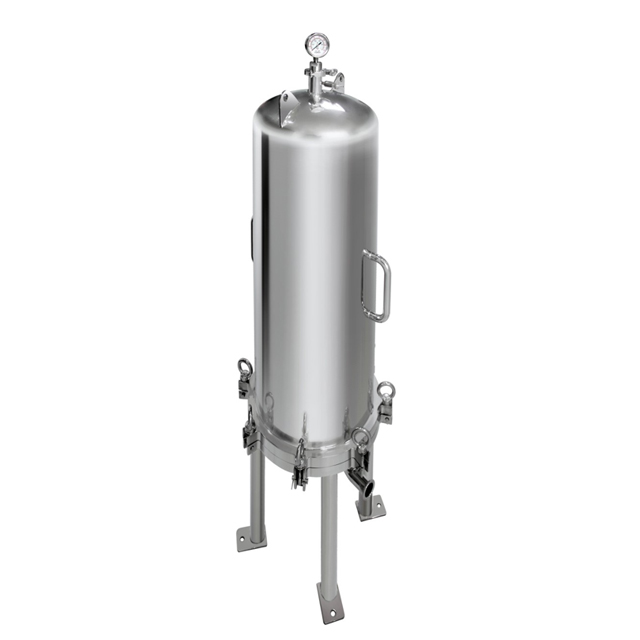

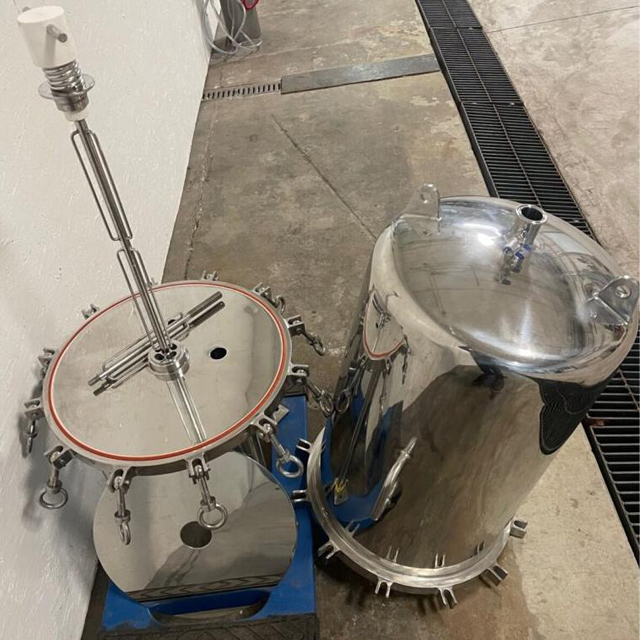

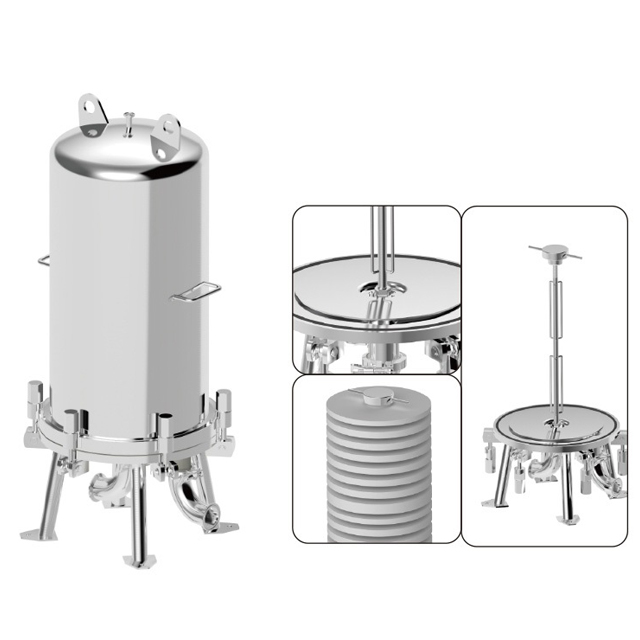

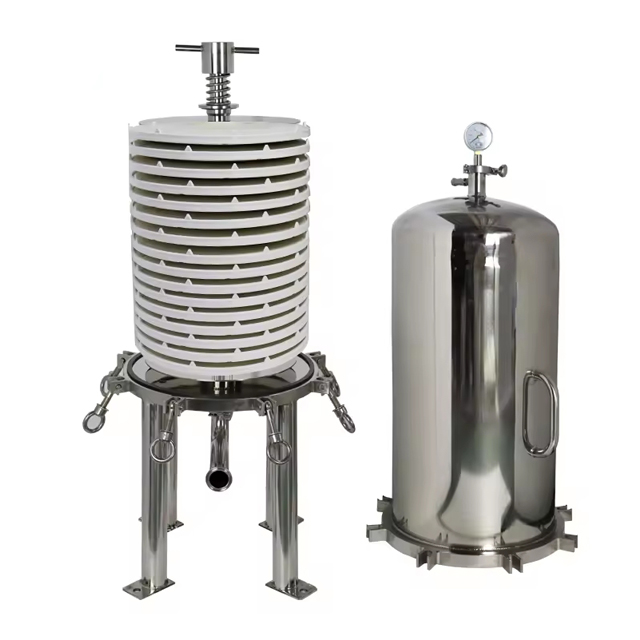

Stainless Steel Lenticular Filter Housing

Features:

A new type of stacks filter, can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration, clarification, purification.

Lenticular Filter Housing can maximal install 4 filter stacks, it can fit for big flow requirements.

The structure is designed and manufactured according to the sanitary level, internal is no dead corner and mirror polishing, it ensure no residual liquid and easy to clean

Applications:

Microbe and solid filtration of alcohol, syrup, beer
End filtration of fruit juice and juice concentrate
Pre filtering of juice membrane filtration
Clarification of alcohol, enzyme dissolution, liquid gum, olive oil
Pharmaceutical, chemical, electronic filtration


Availability:



Inquiry Email

Model:
Lenticular Filter Housing
Brand:
Valuen

Product Overview

Product Parameter

About US

A new type of stacks filter, can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration, clarification, purification.

The structure is designed and manufactured according to the sanitary level, internal is no dead corner and mirror polishing, it ensure no residual liquid and easy to clean.

Lenticular Filter Housing can maximal install 4 filter stacks, it can fit for big flow requirements.

Lenticular Filter Housing

	12”(300mm) Filter Stacks				16”(400mm) Filter Stacks
	1pcs	2pcs	3pcs	4pcs	1pcs	2pcs	3pcs	4pcs
Micron Rating	0.3, 0.8, 1.0, 2.5, 5.0μm
Processing Capacity (L/H)	0-500	500-1500	2000-2500	3000-3500	500-1000	1500-2000	2500-3000	3500-4000
Max Operating Pressure	0.6MPa
Max Operating Temperature	150℃
Total height (mm)	950	1210	1490	1760	960	1230	1500	1770
Shell diameter (mm)	Φ325				Φ450
Shell Material	304 or 316L Stainless Steel
O-ring Material	EPDM, PTFE, Viton, Silicone
