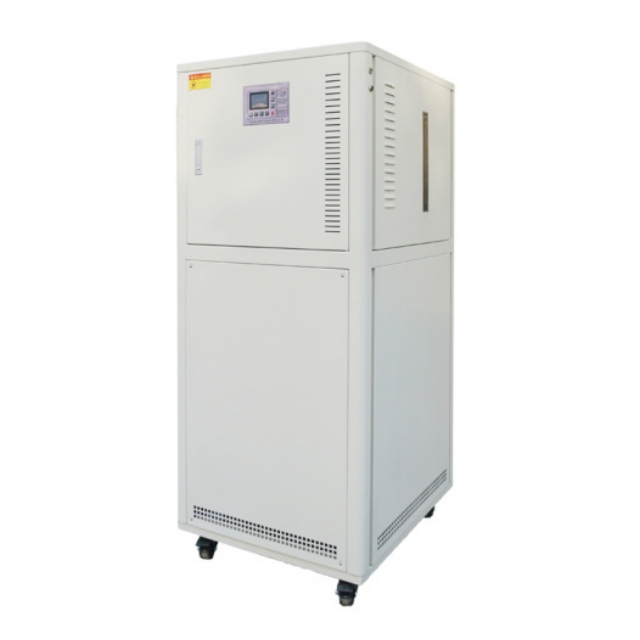

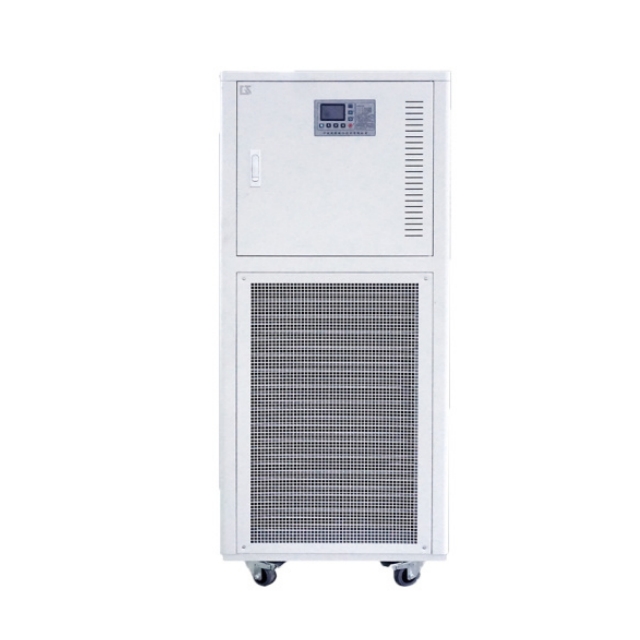

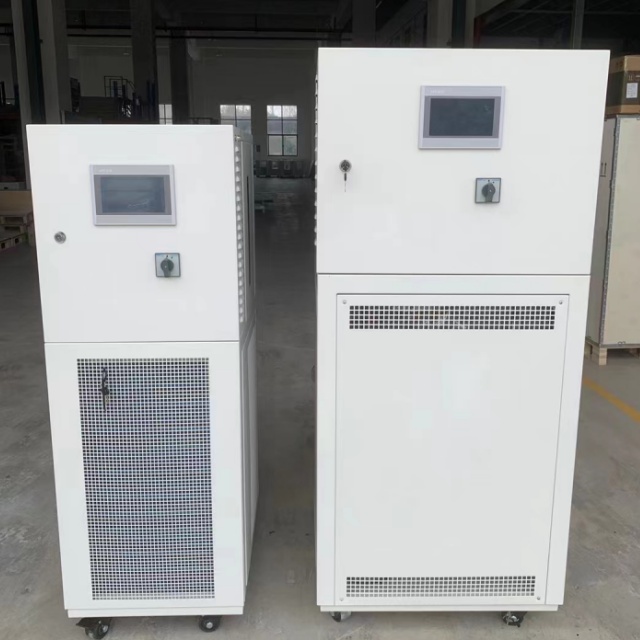

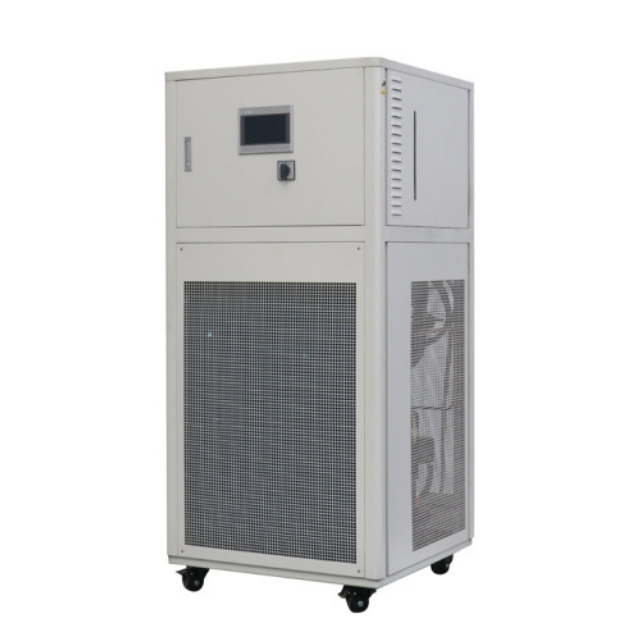

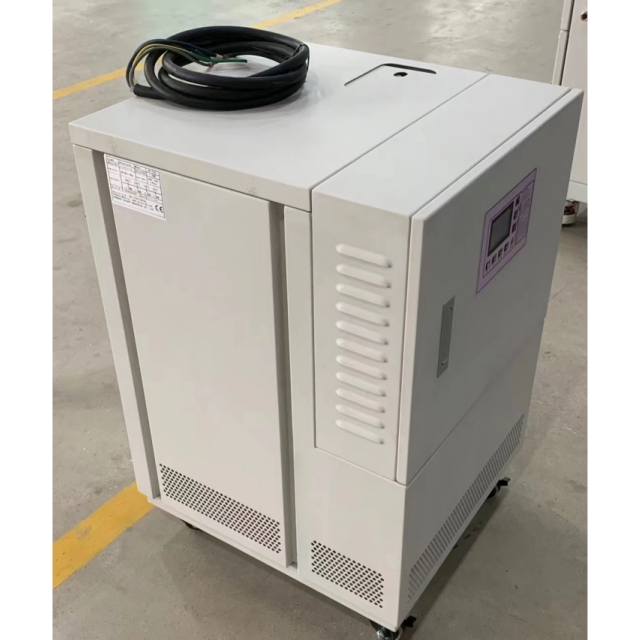

-45℃~ -10℃ Industrial Cooling Circulator/ Circulating Chiller

The basic principle of a circulating chiller is that the temperature of a system or object is governed by the heat flow into it and the heat flow out of it.
Circulating chillers are used to do low temperature experiment such as chemical, biological and physical experiment in low temperature. It is normally used for cooling:

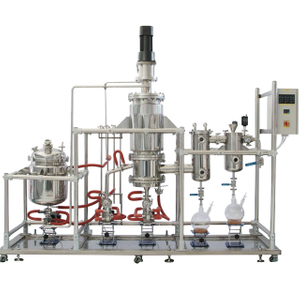

Evaporators (Rotary evaporator, Wiped Film Evaporator)
Distillation Equipment ( Fractional Distillation, Wiped Film Distillation and Other Vacuum Distillation)
Reactors (Glass and Stainless Reactors)
Solvent Extraction Equipment ( Cooling Ethanol)

Refrigeration Compressors And Other Key Parts Are Imported With High Quality And High Reliability And Efficiency
Digital Setting And Display Of Temperature For Easy Operation
Large Cooling Capacity And Fast Cooling Down
Low Noise And StableConstant Running With Low Maintenance Rates


Availability:



Inquiry Email

Model:
VCC-30W(J)
Brand:
Valuen

Product Overview

Product Parameter

About US

Refrigeration Compressors and Other Key Parts Are Imported with High Quality and High Reliability and Efficiency

Digital Setting and Display of Temperature for Easy Operation

Large Cooling Capacity and Fast Cooling Down

Low Noise and Stable Constant Running with Low Maintenance Rates

-45~-10℃ chiller

heater_11

heater_22

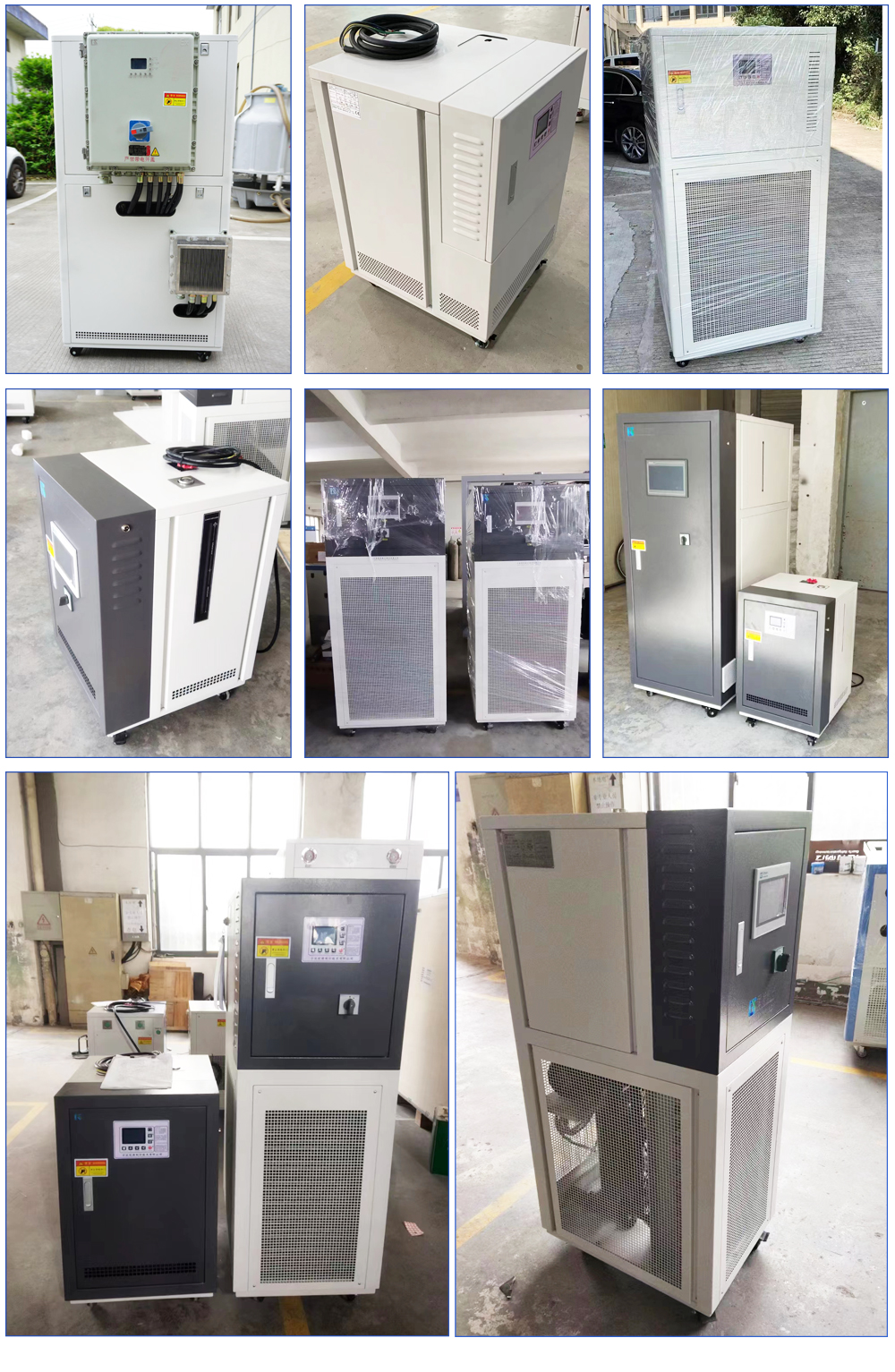

heater_33

Model	VCC-6W(J)	VCC-10W(J)	VCC-15W(J)	VCC-20W(J)	VCC-30W(J)	VCC-40W(J)	VCC-60W(J)	VCC-90W(J)	VCC-120W(J)	VCC-180W(J)
Temperature Range	-45℃~-10℃
Cooling Capacity	6KW	10KW	15KW	20KW	30KW	40KW	60KW	90KW	120KW	180KW
Circulation Pump Flow Rate	6.6m³/H	9m³/H	15m³/H	15m³/H	25m³/H	25m³/H	25m³/H	35m³/H	35m³/H	50m³/H
Circulation Pump Pressure	2.5bar
Interface Size	DN25	DN32	DN40	DN40	DN50	DN50	DN50	DN65	DN65	DN80
Expansion Tank Volume	100L	175L	250L	350L	500L	600L	750L	1000L	1350L	1800L
Refrigerant	R404A
Refrigerating Medium	Non-corrosive liquid, ethanol solution, thermal oil, etc
Safety Protection	High pressure switch, overload relay, thermal protection device and other safety guarantee functions
Power Supply MAX 380V 50HZ	12KW	21KW	30KW	40KW	60KW	70KW	100KW	127KW	167KW	270KW
