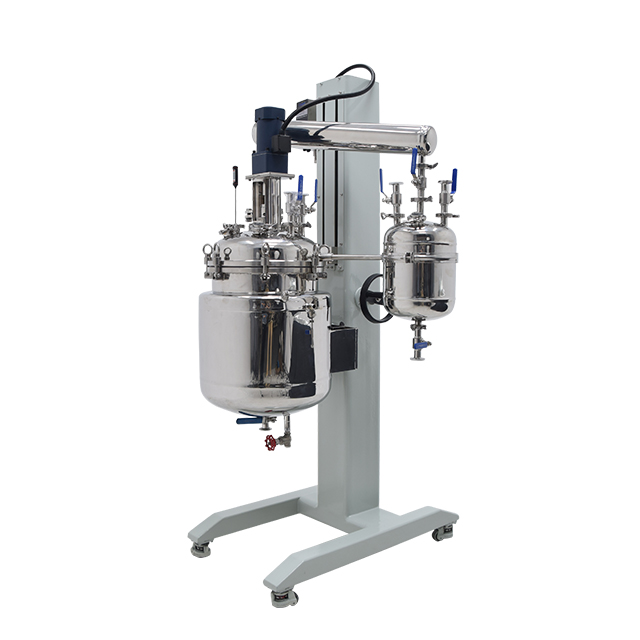

50L Liftable And Rotary Jacketed Stainless Steel Reactor

50L Liftable And Rotary Jacketed Stainless Steel Reactor

Each stainless steel jacketed reactor consists of stainless steel reaction vessel, sealing, agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve, etc.

Motorized or Manual Lift to Elevating Lid and Stirrer
Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Quicky Set-Up And Easy Maintenance
Detachable And Volume-Customizable Condenser And Collection Tanks
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
Easy Configurable for Different Application
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability


Availability:



Inquiry Email

Model:
VJR50S(D)
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

50L Liftable And Rotary Jacketed Stainless Steel Reactor

- Versatile functions of herbal extraction, mixing, synthesis, solvent recovery and chemical reaction

- Herbal extraction mixing synthesis concentration solvent recovery decarboxylation reactor

- Sanitary grade durable 316 & 304 stainless steel jacketed stainless steel reactor

- Electropolished internal tank, fit for standard of food and pharmaceutical industries

- Quicky set-up and easy maintenance stainless steel reactor

- Detachable and volume-customizable condenser and collection tank

- Solvent-resistant PTFE on all sealing components ensures long time durability and operation

50L（带收集罐）升降式反应釜_01 50L（带收集罐）升降式反应釜_02 50L（带收集罐）升降式反应釜_03

50L（带收集罐）升降式反应釜_04 50L（带收集罐）升降式反应釜_08 50L（带收集罐）升降式反应釜_07 50L（带收集罐）升降式反应釜_09

Product Details

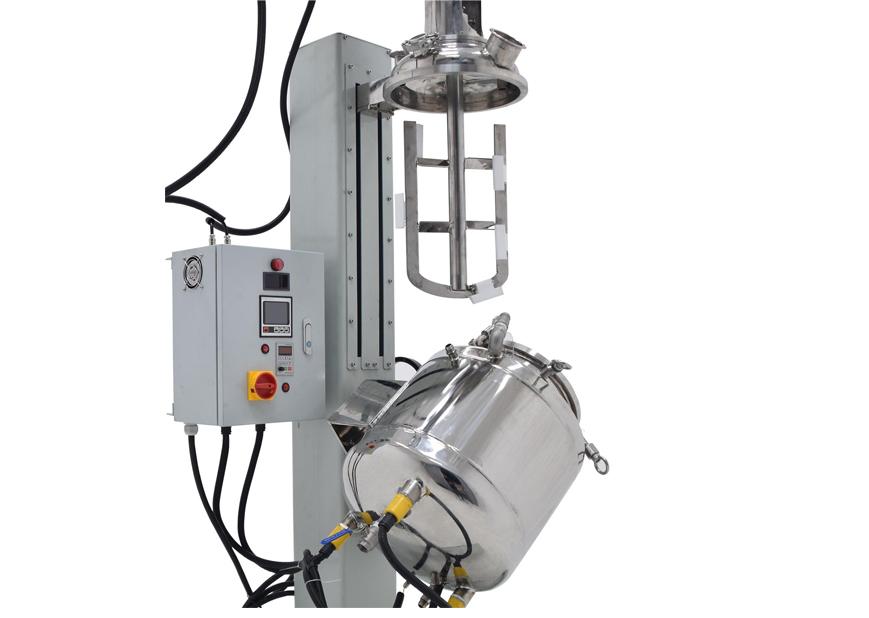

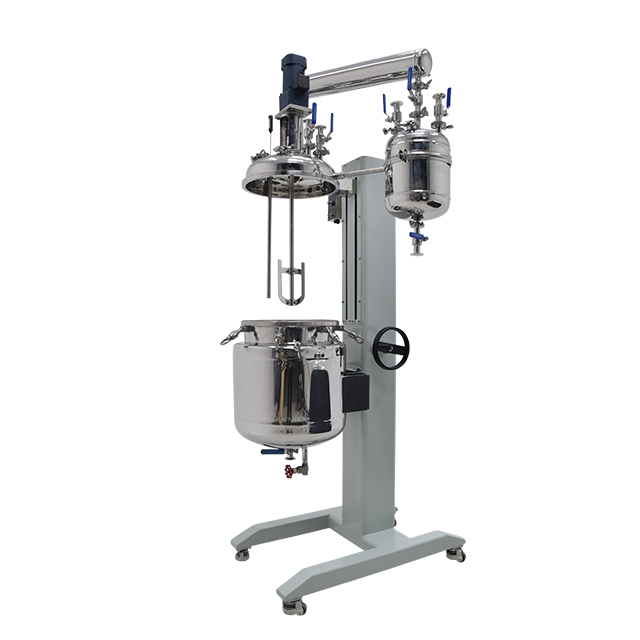

Liftable Cover and Rotary Tank

Motorized or manual lift to elevating lid and stirrer; tank can be rotated to easily discharge material

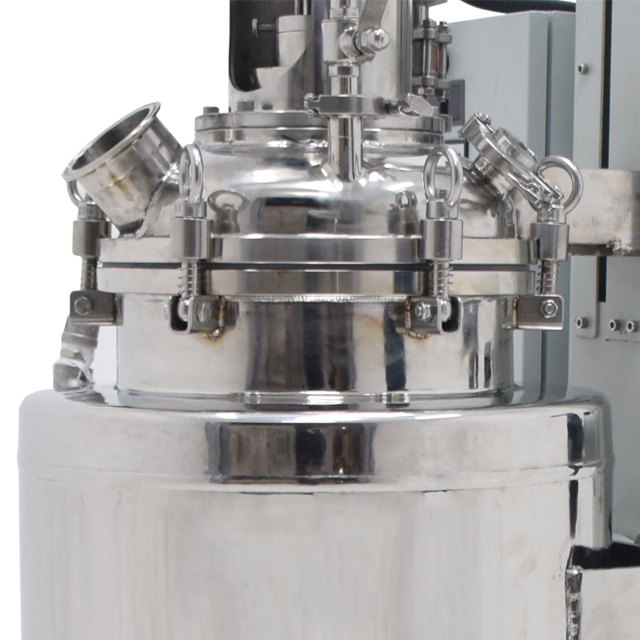

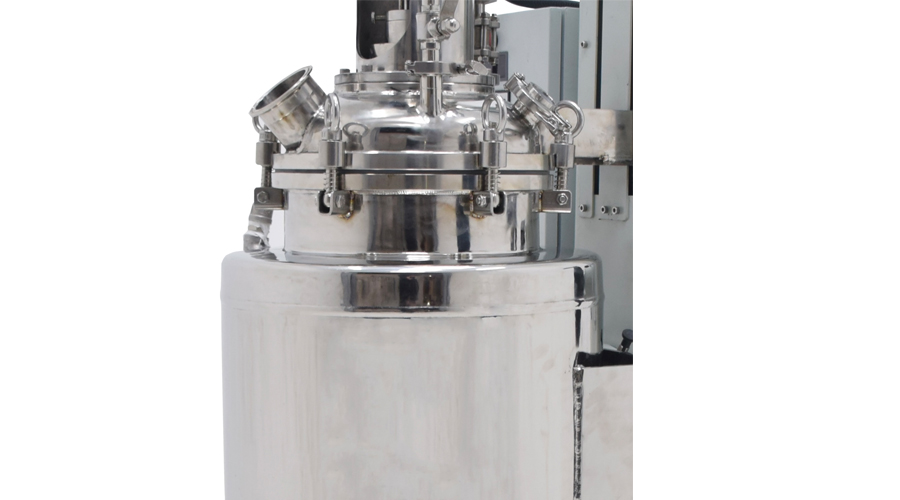

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L

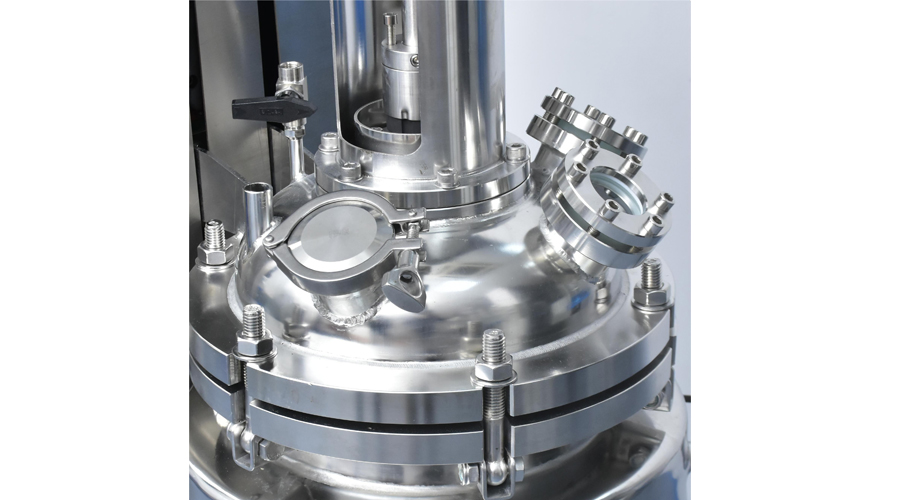

Tank Cover

Sight window makes observation of reacting material easy; Ports and the caliber can be customized

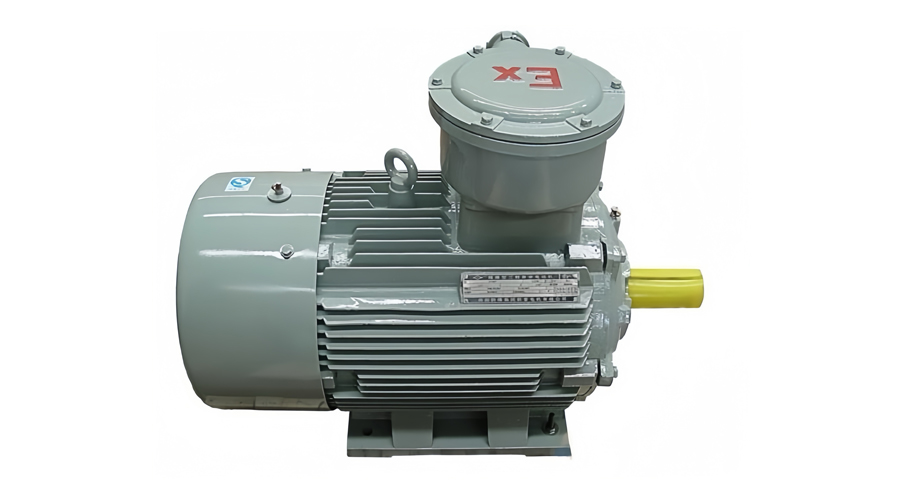

Motor Device

Low noise, stable dynamic, sustainable work; Non-explosion proof or explosion proof can be tailored

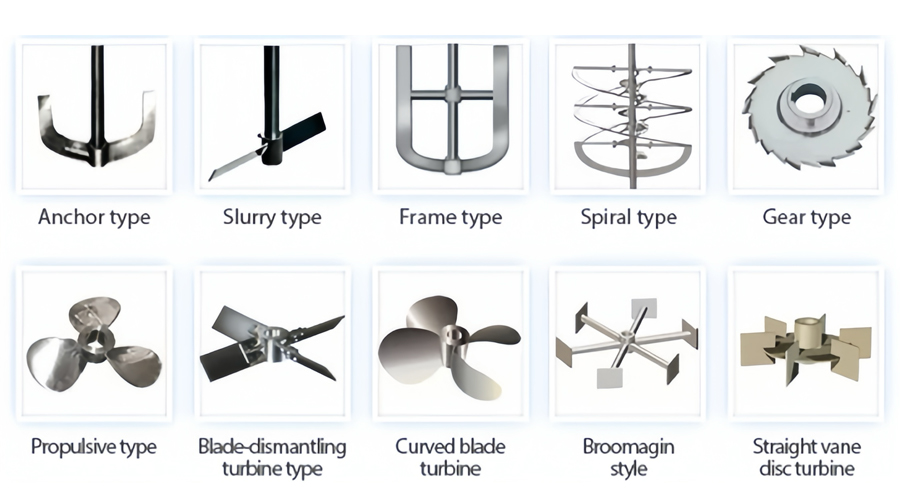

SS Agitator

Agitator type and and layers (1/2/3 layers) can be tailored according to the viscosity of material

Model	VJR10S	VJR20S	VJR50S	VJR100S
Reaction Tank Capacity	10L / 2.6Gal	20L / 5.28Gal	50L / 13.20Gal	100L / 26.4Gal
Jacket Quantity	Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable)
Stainless Steel Material	Wet parts: Sanitary Grade 316 Stainles Steel Outernal parts and Frame: Sanitary Grade 304 Stainless Steel (customizable)
Heating Mode (Optional)	2 Options: Built-in electrical heating device or Circulation jacket with heating fluid
Working Temperature Range	-80°C to 350°C / -112°F to 662°F
Rotary Speed	0-500RPM
Stirrer	316 Stainless Steel Stirrer (shape and layer quantities are customizable)
Stirring Motor Power	200W		370W	400W
Heating Power if with Inner Electrical Heating Device (Optional)	3KW	3KW	6KW	12KW
Control Panel	Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch
Power Supply	110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase
Vacuum Level	Under 0.098Mpa
Condensation Area	0.5m²		1.0m²	1.5m²
Ports on Lid	6 Ports: Stirring port, Air inlet port, Liquid inlet port, Thermowell port, Vacuum gauge port and Condenser port (Customizable)
