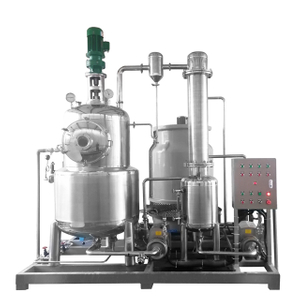

300L Stainless Steel Spherical Vacuum Concentrator

300L Stainless Steel Spherical Vacuum Concentrator

Spherical vacuum concentrator is widely used in pharmaceutical, chemical, food and other industries for concentrating various solutions, such as traditional Chinese medicine extracts, chemical raw materials, food additives and so on.

High Concentration Rate: the spherical structure can make the solution and the heating surface fully contact, improve the heat transfer efficiency, thus improving the concentration efficiency
Convenient Operation: the spherical vacuum concentrator adopts automatic control system, which is simple and convenient to operate
Wide Range of Application: the spherical vacuum concentrator can concentrate various types of solutions with strong adaptability.
Dual Jacketed Sanitary Grade Stainless Steel 100L/200L/300L Ball-Shape Vacuum Concentrator/Evaporator/Solvent Concentration Equipment
Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries
Low Maintenance Rate, Made of Sanitary Grade Durable SS304 &316L and Anti-Corrosive Sealing Parts


Availability:



Inquiry Email

Model:
VBE300
Brand:
Valuen

Product Overview

Product Details

Product Parameter

About US

Multifunctional Sanitary Grade Stainless Steel Ball Shape Vacuum Concentrator

Herbal Extraction, Distillation, Concentration (Solvent Recovery), Crystallization, Synthesis, Decarboxylation

vacuum concentrator

Product Details

High Quality Stainless Steel

Contact parts of machine are completely made of food grade stainless steel 304/316L
Tank Cover

Large opening for easier cleaning; equipped with sight glasses for observation
Motor Device

Low noise, stable dynamic, sustainable work
Customize explosion-proof motor
SS Agitator

Agitator can be paddle, frame, scraper, disc, anchor, propeller, vertical ribbon mixer, conical ribbon mixer etc
Heating Device

1)Electric heating: equipped with electric heating tubes (optional for 50L-300L)
2)Jacket heating: circuilator thermal oil into jacket to heat the material in the tank

Model	VBE50	VBE100	VBE200	VBE300	VBE500	VBE1000
Evaporation Tank Capacity	50L/13.20Gal	100L/26.40Gal	200L/152.80Gal	300L/179.20Gal	500L/132Gal	1000L/264Gal
Receiving Tank Capacity	20L/5.28Gal	50L/13.20Gal	100L/26.41Gal	150L/39.6Gal	200L/52.8Gal	300L/79.25Gal
Jacket Quantity	Dual jackets with inner heating jacket and outer insulation jacket
Stainless Steel Material	Wet Parts: Sanitary Grade 316 Stainless Steel Outer parts and Frame: Sanitary Grade 304 Stainless steel Customizable
Working Temperature Range	-80℃ to 250℃ (1-112F to 482F)
Stirrer	316 Stainless Steel Stirrer (customizable)
Power Supply	220V, 50/60Hz, Single Phase; 220V or 380V, 50/60Hz, 3 Phase
Stirring Motor Power	370 W	400 W	1500 W	2000 W	2000 W	2500 W
Heating Area	0.25 m²	0.6 m²	0.9 m²	1.1 m²	1.5 m²	2.5 m²
Condensation Area	1.0 m²	1.5 m²	2.0 m²	2.4 m²	3.0 m²	4.0 m²
Ancillary Equipment (Optional)	Discharge pumps for concentrates and distillates, steam heater, water cooling chiller (or water cooling tower)
